標題: digit map to SP2 [打印本頁]

作者: yiucsw 時間: 2013-2-20 22:56 標題: digit map to SP2

Sorry that i have not set the OBI110 for sometime,
Can someone help me how to config the OBi110:
use Phone to call 013XXxXXxxXX, then the obi100 will call route SP2 (ET263) instead of setup **2
use phone to call XXXXXXXX, then the obi100 will call route Mli (phone port)
call from mobile fix number 91XXXXXX, then the obi100 will call route SP2(ET263) (one stage)

作者: yiucsw 時間: 2013-2-21 00:04

although it is not good, but at least fullfill my first target:
dial 00 e.g. 0060,0030 go to LINE 1
dial 01xxxxxxxxx go to SP2 (et263) which is go to china.
dial 1-9 go to Line 1 which call hong kong number.

{([1-9]x?*(Mpli)):pp},{(<#:>|999|00):li},{**0:aa},{***:aa2},{(<**1:>(Msp1)):sp1},{(<**2:>|01xxxxxxxxx(Msp2)):sp2},{(<**8:>(Mli)):li},{(<**9:>(Mpp)):pp},{(Mpli):pli}

do any one know how to do the one stage call?

作者: lookforyou 時間: 2013-2-21 08:33

修改phone port 的digimap和outboundcallroute

作者: yiucsw 時間: 2013-2-21 17:05

Phone port？ digital map 有什么用处？
Mobile -> line -> aa -> sp2 可以吗？

作者: john.smith 時間: 2013-10-14 19:07

師兄，我唔係好明，請問係咪只係需要修改phone port入面嘅OutboundCallRoute就可以？

PrimaryLine需要改為TrunkGroup嘛？如果要，咁TrunkGroup嘅digitmap係咪又要修改？

thanks so much!

although it is not good, but at least fullfill my first target:
dial 00 e.g. 0060,0030 go to LINE 1
...
yiucsw 發表於 2013-2-21 00:04

作者: yiucsw 時間: 2013-10-16 23:50

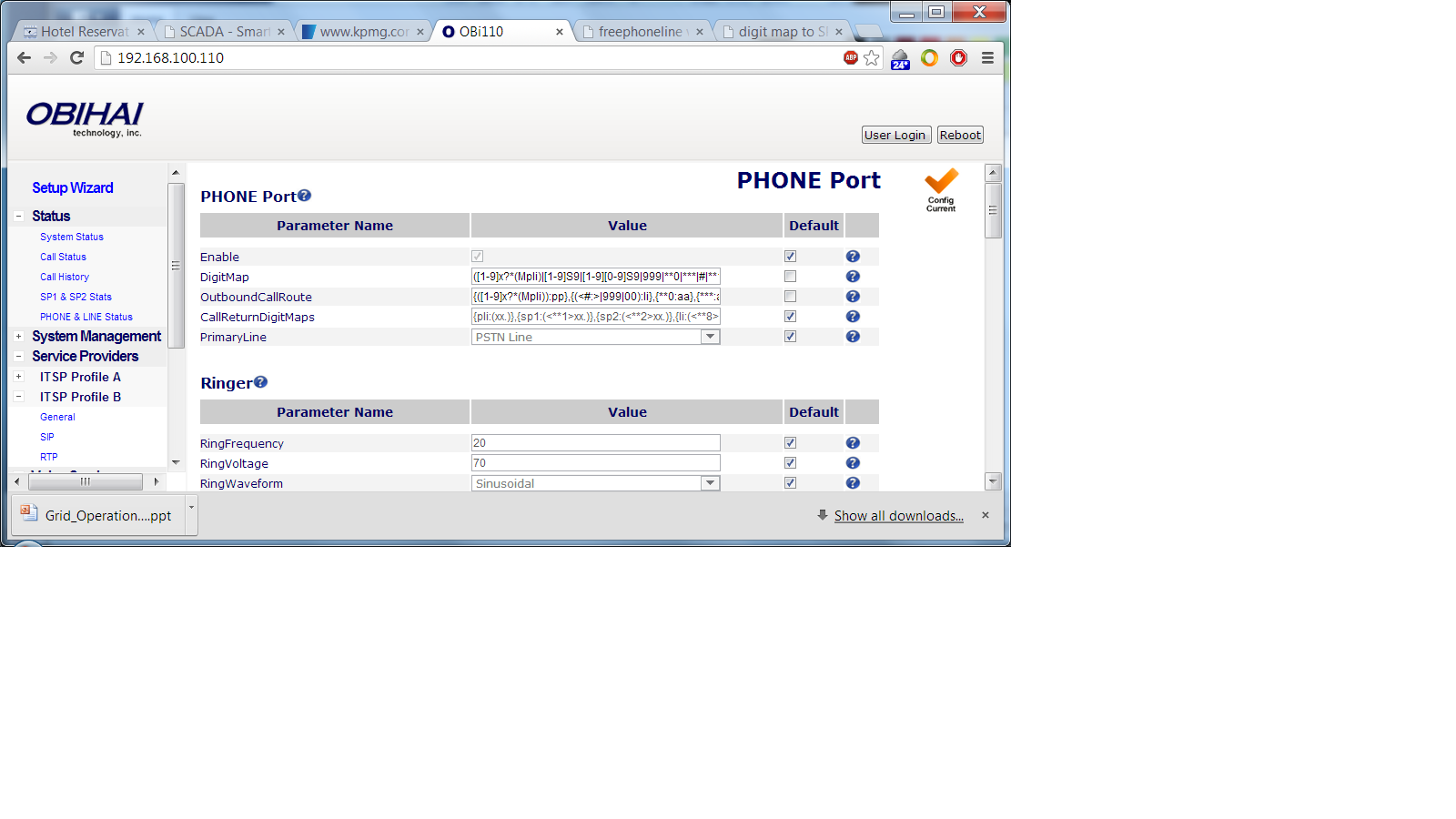

put into phone port

圖片附件: obi110.png (2013-10-16 23:48, 156.36 KB) / 下載次數 1061
http://telecom-cafe.com/forum/attachment.php?aid=2849&k=651672fb1543d872a63a9b3d640e31c6&t=1761871197&sid=rU4YBr

作者: john.smith 時間: 2013-10-17 18:56

本帖最後由 john.smith 於 2013-10-17 19:57 編輯

唔該師兄！請問DigitMap要改咩呢？你只係寫咗OutboundCallRoute嘅script，我勉強睇得明。

我主要係想改只要係0755+8個位數字或者1字頭嘅11個字號碼就自動經SP2出，DigitMap似乎冇野要改？

我嘗試過只係改OutboundCallRoute，但無論如何佢都係出SP1，而且之後佢仲好似唔可以正確save到。

put into phone port
yiucsw 發表於 2013-10-16 23:50
