標題: FreeSWITCH QPKG on QNAP NAS （x86) —— 注册CN Phone非常简单！ [打印本頁]
作者: 角色    時間: 2012-10-14 16:16     標題: FreeSWITCH QPKG on QNAP NAS （x86) —— 注册CN Phone非常简单！

本帖最後由 角色 於 2012-10-19 14:22 編輯

原来网上面已经有人把最新的FreeSWITCH 1.2.0 做QNAP QPKG Package来方便大家安装，现在的Package只能在（x86）上用。

QNAP FreeSWITCH QPKG package:
http://www.knikkink.com/freeswitch

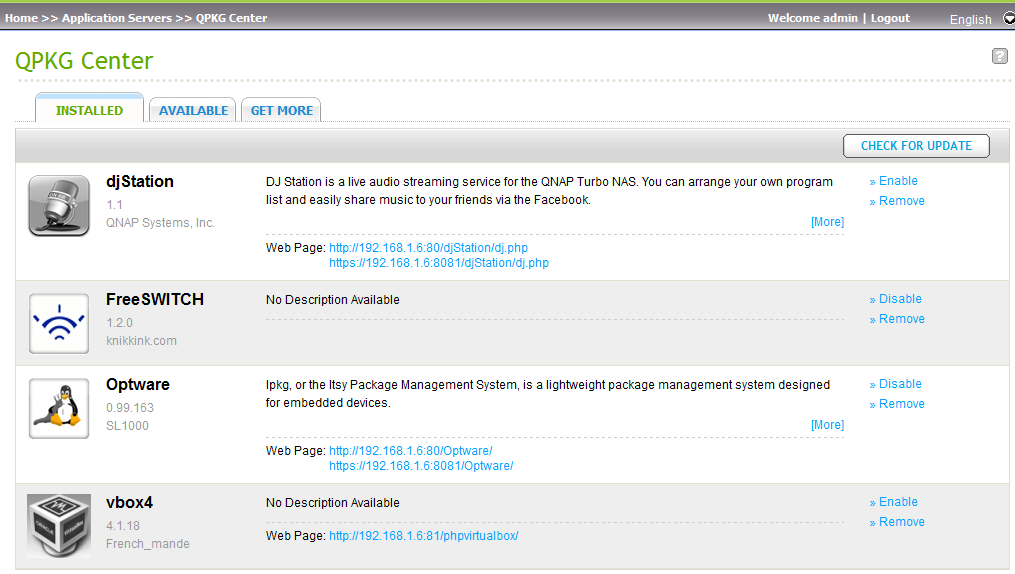

安装在QPKG Centre里有FreeSWITCH，然后你enable它就可以。


圖片附件: 0060.png (2012-10-14 16:41, 63.21 KB) / 下載次數 953
http://telecom-cafe.com/forum/attachment.php?aid=1590&k=8a8af2d4eabc660974ccb1c94ba3e2a0&t=1739736254&sid=59FAzr

作者: 角色    時間: 2012-10-14 16:17

本帖最後由 角色 於 2012-10-19 13:13 編輯

Objectives:

1. Registration (internal) of two accounts. For instance Extensions 1000 and 1001 (default password 1234) (done)
2. Call each other (done)
3. Echo test of each extension (done)
4. External (internet) SIP client registration (done)
5. Outbound/inbound VoIP-provding-PSTN call (planned)
作者: 雯雯    時間: 2012-10-14 16:27

Let me try it!
作者: 角色    時間: 2012-10-14 16:34

本帖最後由 角色 於 2012-10-15 07:04 編輯

Documentation

Main_Page Link
NAT_Traversal Link
作者: 角色    時間: 2012-10-14 16:36

本帖最後由 角色 於 2012-10-16 00:24 編輯

Examples：

http://www.cnblogs.com/jizha/default.html
作者: 角色    時間: 2012-10-14 16:36

本帖最後由 角色 於 2012-10-19 18:32 編輯

Gateway settings on FreeSWITCH:

1. Iptel Link
2. ComNet Phone Link

Gateway outbound call

1. ComNet Phone Link
作者: 角色    時間: 2012-10-14 16:36

备用帖子。
作者: 角色    時間: 2012-10-14 16:36

备用帖子。
作者: 角色    時間: 2012-10-14 16:37

备用帖子。
作者: 角色    時間: 2012-10-14 16:37

备用帖子。
作者: 角色    時間: 2012-10-14 16:37

备用帖子。
作者: 角色    時間: 2012-10-14 16:37

备用帖子。
作者: 角色    時間: 2012-10-14 16:38

备用帖子。
作者: 角色    時間: 2012-10-14 16:38

备用帖子。
作者: 角色    時間: 2012-10-14 16:38

备用帖子。
作者: 角色    時間: 2012-10-14 16:38

备用帖子。
作者: 角色    時間: 2012-10-14 16:42

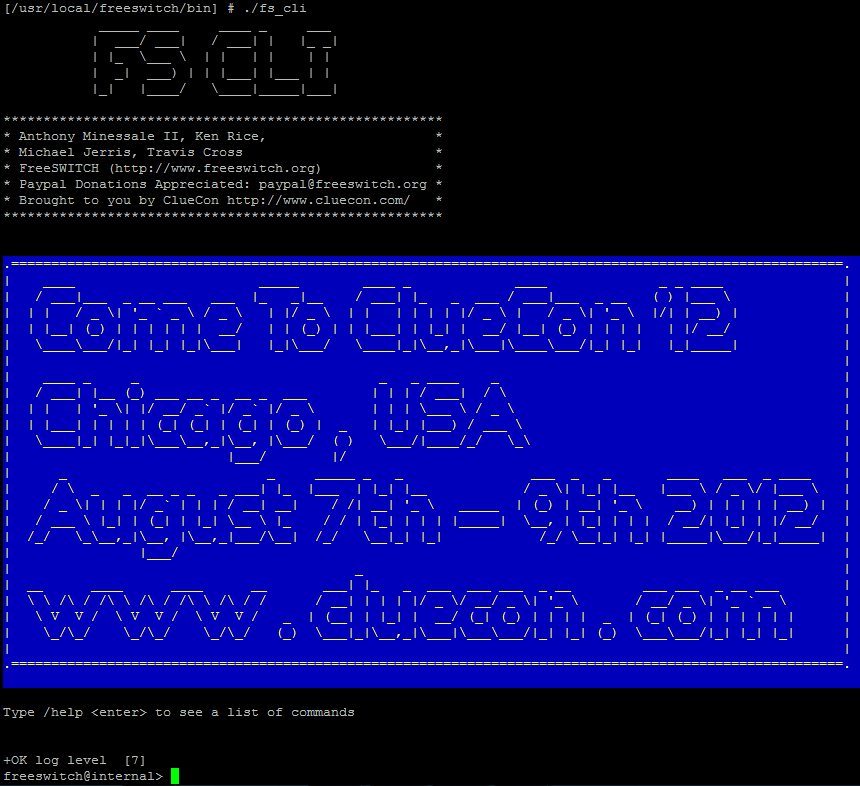

第一command，fs_cli


圖片附件: 0061.png (2012-10-14 16:42, 23.5 KB) / 下載次數 765
http://telecom-cafe.com/forum/attachment.php?aid=1591&k=67d2056e848118045c100ca4e24fd9e1&t=1739736254&sid=59FAzr

作者: 角色    時間: 2012-10-14 16:47

CLI里的help有
  1. freeswitch@internal> /help
  2. Command                         Description
  3. -----------------------------------------------
  4. /help                           Help
  5. /exit, /quit, /bye, ...         Exit the program.
  6. /event, /noevents, /nixevent    Event commands.
  7. /log, /nolog                    Log commands.
  8. /uuid                           Filter logs for a single call uuid
  9. /filter                         Filter commands.
  10. /debug [0-7]                    Set debug level.

  12. freeswitch@internal>
複製代碼
作者: 角色    時間: 2012-10-14 16:54

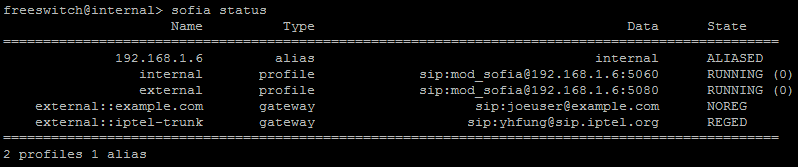

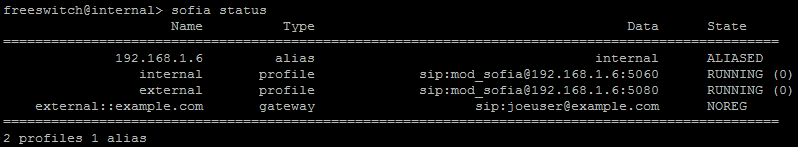

估计大家用得最多的就是sofia status


圖片附件: 0062.png (2012-10-14 16:54, 9.24 KB) / 下載次數 759
http://telecom-cafe.com/forum/attachment.php?aid=1592&k=fd368e8dc9ac4819c7c4e9a564e2f835&t=1739736254&sid=59FAzr

作者: 角色    時間: 2012-10-14 17:01

出了#18的简单help之外，如果单打help就有下面的详细能接受的commands
  1. freeswitch@internal> help

  3. Valid Commands:

  5. ...,,shutdown,mod_commands
  6. acl,<ip> <list_name>,compare an ip to an acl list,mod_commands
  7. alias,[add|stickyadd] <alias> <command> | del [<alias>|*],Alias,mod_commands
  8. banner,,Returns the system banner,mod_commands
  9. bg_system,<command>,Execute a system command in the background,mod_commands
  10. bgapi,<command>[ <arg>],Execute an api command in a thread,mod_commands
  11. break,<uuid> [all],Break,mod_commands
  12. cdr_csv,parameters,cdr_csv controls,mod_cdr_csv
  13. chat,<proto>|<from>|<to>|<message>|[<content-type>],chat,mod_dptools
  14. cluechoo,syntax,Cluechoo API,mod_cluechoo
  15. complete,add <word>|del [<word>|*],Complete,mod_commands
  16. cond,<expr> ? <true val> : <false val>,Eval a conditional,mod_commands
  17. conference,             list [delim <string>]|[count]
  18.                 xml_list
  19.                 energy <member_id|all|last|non_moderator> [<newval>]
  20.                 volume_in <member_id|all|last|non_moderator> [<newval>]
  21.                 volume_out <member_id|all|last|non_moderator> [<newval>]
  22.                 play <file_path> [async|<member_id>]
  23.                 say <text>
  24.                 saymember <member_id> <text>
  25.                 stop <[current|all|async|last]> [<member_id>]
  26.                 dtmf <[member_id|all|last|non_moderator]> <digits>
  27.                 kick <[member_id|all|last|non_moderator]> [<optional sound file>]
  28.                 hup <[member_id|all|last|non_moderator]>
  29.                 mute <[member_id|all]|last|non_moderator>
  30.                 unmute <[member_id|all]|last|non_moderator>
  31.                 deaf <[member_id|all]|last|non_moderator>
  32.                 undeaf <[member_id|all]|last|non_moderator>
  33.                 relate <member_id> <other_member_id> [nospeak|nohear|clear]
  34.                 lock
  35.                 unlock
  36.                 agc
  37.                 dial <endpoint_module_name>/<destination> <callerid number> <callerid name>
  38.                 bgdial <endpoint_module_name>/<destination> <callerid number> <callerid name>
  39.                 transfer <conference_name> <member id> [...<member id>]
  40.                 record <filename>
  41.                 chkrecord <confname>
  42.                 norecord <[filename|all]>
  43.                 pause <filename>
  44.                 resume <filename>
  45.                 recording [start|stop|check|pause|resume] [<filename>|all]
  46.                 exit_sound on|off|none|file <filename>
  47.                 enter_sound on|off|none|file <filename>
  48.                 pin <pin#>
  49.                 nopin
  50.                 get <parameter-name>
  51.                 set <parameter-name> <value>
  52.                 floor <member_id|last>
  53.                 enforce_floor <member_id|last>,Conference module commands,mod_conference
  54. console,loglevel [level]|colorize [on|toggle|off],Console,mod_console
  55. console_complete,<line>,,mod_commands
  56. console_complete_xml,<line>,,mod_commands
  57. create_uuid,<uuid> <other_uuid>,Create a uuid,mod_commands
  58. db,[insert|delete|select]/<realm>/<key>/<value>,db get/set,mod_db
  59. db_cache,status,db cache management,mod_commands
  60. domain_exists,<domain>,check if a domain exists,mod_commands
  61. echo,<data>,echo,mod_commands
  62. enum,,ENUM,mod_enum
  63. enum_auto,,ENUM,mod_enum
  64. escape,<data>,escape a string,mod_commands
  65. eval,[uuid:<uuid> ]<expression>,eval (noop),mod_commands
  66. event_sink,<web data>,event_sink,mod_event_socket
  67. expand,[uuid:<uuid> ]<cmd> <args>,expand vars and execute,mod_commands
  68. expr,<expr>,Eval an expression,mod_expr
  69. fifo,list|list_verbose|count|debug|status|importance [<fifo name>]|reparse [del_all],Return data about a fifo,mod_fifo
  70. fifo_add_outbound,<node> <url> [<priority>],Add outbound members to a fifo,mod_fifo
  71. fifo_check_bridge,<uuid>|<outbound_id>,check if uuid is in a bridge,mod_fifo
  72. fifo_member,[add <fifo_name> <originate_string> [<simo_count>] [<timeout>] [<lag>] [<expires>] [<taking_calls>] | del <fifo_name> <originate_string>],Add members to a fifo,mod_fifo
  73. file_exists,<file>,check if a file exists on server,mod_commands
  74. find_user_xml,<key> <user> <domain>,find a user,mod_commands
  75. fsctl,[send_sighup|hupall|pause [inbound|outbound]|resume [inbound|outbound]|shutdown [cancel|elegant|asap|now|restart]|sps|sync_clock|sync_clock_when_idle|reclaim_mem|max_sessions|min_dtmf_duration [num]|max_dtmf_duration [num]|default_dtmf_duration [num]|min_idle_cpu|loglevel [level]|debug_level [level]],control messages,mod_commands
  76. global_getvar,<var>,global_getvar,mod_commands
  77. global_setvar,<var>=<value> [=<value2>],global_setvar,mod_commands
  78. group,[insert|delete|call]:<group name>:<url>,group [insert|delete|call],mod_db
  79. group_call,<group>[@<domain>],Generate a dial string to call a group,mod_commands
  80. hash,[insert|delete|select]/<realm>/<key>/<value>,hash get/set,mod_hash
  81. hash_dump,all|limit|db [<realm>],dump hash/limit_hash data (used for synchronization),mod_hash
  82. hash_remote,list|kill [name]|rescan,hash remote,mod_hash
  83. help,,Show help for all the api commands,mod_commands
  84. host_lookup,<hostname>,host_lookup,mod_commands
  85. hostname,,Returns the system hostname,mod_commands
  86. httapi,[debug_on|debug_off],HT-TAPI Hypertext Telephony API,mod_httapi
  87. hupall,<cause> [<var> <value>],hupall,mod_commands
  88. in_group,<user>[@<domain>] <group_name>,determine if a user is in a group,mod_commands
  89. is_lan_addr,<ip>,see if an ip is a lan addr,mod_commands
  90. jsapi,jsapi <script> [additional_vars [...]],execute an api call,mod_spidermonkey
  91. jsrun,jsrun <script> [additional_vars [...]],run a script,mod_spidermonkey
  92. limit_hash_usage,<realm> <id>,Deprecated: gets the usage count of a limited resource,mod_commands
  93. limit_interval_reset,<backend> <realm> <resource>,Reset the interval counter for a limited resource,mod_commands
  94. limit_reset,<backend>,Reset the counters of a limit backend,mod_commands
  95. limit_status,<backend>,Gets the status of a limit backend,mod_commands
  96. limit_usage,<backend> <realm> <id>,Gets the usage count of a limited resource,mod_commands
  97. load,<mod_name>,Load Module,mod_commands
  98. log,<level> <message>,Log,mod_commands
  99. lua,<script>,run a script as an api function,mod_lua
  100. luarun,<script>,run a script,mod_lua
複製代碼
作者: 角色    時間: 2012-10-14 17:01

  1. md5,<data>,md5,mod_commands
  2. module_exists,<module>,check if module exists,mod_commands
  3. msleep,<milliseconds>,sleep N milliseconds,mod_commands
  4. nat_map,[status|republish|reinit] | [add|del] <port> [tcp|udp] [static],nat_map,mod_commands
  5. originate,<call url> <exten>|&<application_name>(<app_args>) [<dialplan>] [<context>] [<cid_name>] [<cid_num>] [<timeout_sec>],Originate a Call,mod_commands
  6. pause,<uuid> <on|off>,Pause,mod_commands
  7. presence,[in|out] <user> <rpid> <message>,presence,mod_dptools
  8. reg_url,<user>@<realm>,,mod_commands
  9. regex,<data>|<pattern>[|<subst string>],Eval a regex,mod_commands
  10. reload,[-f] <mod_name>,Reload Module,mod_commands
  11. reloadacl,,Reload ACL,mod_commands
  12. reloadxml,,Reload XML,mod_commands
  13. replace,<data>|<string1>|<string2>,replace a string,mod_commands
  14. say_string,<module_name>[.<ext>] <lang>[.<ext>] <say_type> <say_method> [<say_gender>] <text>,,mod_commands
  15. sched_api,[+@]<time> <group_name> <command_string>[&],Schedule an api command,mod_commands
  16. sched_broadcast,[+]<time> <uuid> <path> [aleg|bleg|both],Schedule a broadcast event to a running call,mod_commands
  17. sched_del,<task_id>|<group_id>,Delete a Scheduled task,mod_commands
  18. sched_hangup,[+]<time> <uuid> [<cause>],Schedule a running call to hangup,mod_commands
  19. sched_transfer,[+]<time> <uuid> <extension> [<dialplan>] [<context>],Schedule a transfer for a running call,mod_commands
  20. show,codec|endpoint|application|api|dialplan|file|timer|calls [count]|channels [count|like <match string>]|calls|detailed_calls|bridged_calls|detailed_bridged_calls|aliases|complete|chat|management|modules|nat_map|say|interfaces|interface_types|tasks|limits,Show,mod_commands
  21. show_local_stream,[local_stream_name [xml]],Shows a local stream,mod_local_stream
  22. shutdown,,shutdown,mod_commands
  23. sofia,<cmd> <args>,Sofia Controls,mod_sofia
  24. sofia_contact,[profile/]<user>@<domain>,Sofia Contacts,mod_sofia
  25. sofia_count_reg,[profile/]<user>@<domain>,Count Sofia registration,mod_sofia
  26. sofia_dig,<url>,SIP DIG,mod_sofia
  27. sofia_gateway_data,<gateway_name> [ivar|ovar|var] <name>,Get data from a sofia gateway,mod_sofia
  28. sofia_username_of,[profile/]<user>@<domain>,Sofia Username Lookup,mod_sofia
  29. sql_escape,<string>,Escape a string to prevent sql injection,mod_commands
  30. start_local_stream,<local_stream_name> [<path>] [<rate>] [<shuffle>] [<prebuf>] [<channels>] [<interval>] [<timer_name>],Starts a new local_stream,mod_local_stream
  31. status,,status,mod_commands
  32. stop_local_stream,<local_stream_name>,Stops and unloads a local_stream,mod_local_stream
  33. strepoch,<string>,Convert a date string into epoch time,mod_dptools
  34. strftime,<format_string>,strftime,mod_dptools
  35. strftime_tz,<Timezone_name> [<epoch>|][format string],strftime_tz,mod_commands
  36. strmicroepoch,<string>,Convert a date string into micoepoch time,mod_dptools
  37. stun,<stun_server>[:port],stun,mod_commands
  38. switchname,,Returns the switch name,mod_commands
  39. system,<command>,Execute a system command,mod_commands
  40. time_test,<mss> [count],time_test,mod_commands
  41. timer_test,<10|20|40|60|120> [<1..200>] [<timer_name>],timer_test,mod_commands
  42. tone_detect,<uuid> <key> <tone_spec> [<flags> <timeout> <app> <args> <hits>],Start Tone Detection on a channel,mod_commands
  43. unload,[-f] <mod_name>,Unload Module,mod_commands
  44. unsched_api,<task_id>,Unschedule an api command,mod_commands
  45. url_decode,<string>,url decode a string,mod_commands
  46. url_encode,<string>,url encode a string,mod_commands
  47. user_data,<user>@<domain> [var|param|attr] <name>,find user data,mod_commands
  48. user_exists,<key> <user> <domain>,find a user,mod_commands
  49. uuid_audio,<uuid> [start [read|write] [mute|level <level>]|stop],uuid_audio,mod_commands
  50. uuid_break,<uuid> [all],Break,mod_commands
  51. uuid_bridge,,uuid_bridge,mod_commands
  52. uuid_broadcast,<uuid> <path> [aleg|bleg|holdb|both],broadcast,mod_commands
  53. uuid_buglist,<uuid>,List media bugs on a session,mod_commands
  54. uuid_chat,<uuid> <text>,Send a chat message,mod_commands
  55. uuid_debug_audio,<uuid> <read|write|both> <on|off>,debug audio,mod_commands
  56. uuid_deflect,<uuid> <uri>,Send a deflect,mod_commands
  57. uuid_displace,<uuid> [start|stop] <path> [<limit>] [mux],session displace,mod_commands
  58. uuid_display,<uuid> <display>,change display,mod_commands
  59. uuid_dual_transfer,<uuid> <A-dest-exten>[/<A-dialplan>][/<A-context>] <B-dest-exten>[/<B-dialplan>][/<B-context>],Transfer a session and its partner,mod_commands
  60. uuid_dump,<uuid> [format],uuid_dump,mod_commands
  61. uuid_exists,<uuid>,see if a uuid exists,mod_commands
  62. uuid_fileman,<uuid> <cmd>:<val>,uuid_fileman,mod_commands
  63. uuid_flush_dtmf,<uuid>,Flush dtmf on a given uuid,mod_commands
  64. uuid_getvar,<uuid> <var>,uuid_getvar,mod_commands
  65. uuid_hold,[off] <uuid> [<display>],hold,mod_commands
  66. uuid_jitterbuffer,<uuid> [0|<min_msec>[:<max_msec>]],Try to cut out of a call path / attended xfer,mod_commands
  67. uuid_kill,<uuid> [cause],Kill Channel,mod_commands
  68. uuid_limit,<uuid> <backend> <realm> <resource> [<max>[/interval]] [number [dialplan [context]]],Increase limit resource,mod_commands
  69. uuid_limit_release,<uuid> <backend> [realm] [resource],Release limit resource,mod_commands
  70. uuid_loglevel,<uuid> <level>,set loglevel on session,mod_commands
  71. uuid_media,[off] <uuid>,media,mod_commands
  72. uuid_outgoing_answer,<uuid>,Answer Outgoing Channel,mod_commands
  73. uuid_park,<uuid>,Park Channel,mod_commands
  74. uuid_phone_event,<uuid>,Send and event to the phone,mod_commands
  75. uuid_preprocess,<>,Pre-process Channel,mod_commands
  76. uuid_record,<uuid> [start|stop] <path> [<limit>],session record,mod_commands
  77. uuid_recovery_refresh,<uuid> <uri>,Send a recovery_refresh,mod_commands
  78. uuid_recv_dtmf,<uuid> <dtmf_data>,receive dtmf digits,mod_commands
  79. uuid_send_dtmf,<uuid> <dtmf_data>,send dtmf digits,mod_commands
  80. uuid_send_info,<uuid>,Send info to the endpoint,mod_commands
  81. uuid_session_heartbeat,<uuid> [sched] [0|<seconds>],uuid_session_heartbeat,mod_commands
  82. uuid_setvar,<uuid> <var> [value],uuid_setvar,mod_commands
  83. uuid_setvar_multi,<uuid> <var>=<value>;<var>=<value>...,uuid_setvar_multi,mod_commands
  84. uuid_simplify,<uuid>,Try to cut out of a call path / attended xfer,mod_commands
  85. uuid_transfer,<uuid> [-bleg|-both] <dest-exten> [<dialplan>] [<context>],Transfer a session,mod_commands
  86. uuid_video_refresh,<uuid>,Send video refresh.,mod_commands
  87. uuid_zombie_exec,<uuid>,Set zombie_exec flag on the specified uuid,mod_commands
  88. valet_info,[<lot name>],Valet Parking Info,mod_valet_parking
  89. version,,version,mod_commands
  90. vm_boxcount,[profile/]<user>@<domain>[|[new|saved|new-urgent|saved-urgent|all]],vm_boxcount,mod_voicemail
  91. vm_delete,<id>@<domain>[/profile] [<uuid>],vm_delete,mod_voicemail
  92. vm_fsdb_auth_login,<profile> <domain> <user> <password>,vm_fsdb_auth_login,mod_voicemail
  93. vm_fsdb_msg_count,<format> <profile> <domain> <user> <folder>,vm_fsdb_msg_count,mod_voicemail
  94. vm_fsdb_msg_delete,<profile> <domain> <user> <uuid>,vm_fsdb_msg_delete,mod_voicemail
  95. vm_fsdb_msg_email,<profile> <domain> <user> <uuid> <email>,vm_fsdb_msg_email,mod_voicemail
  96. vm_fsdb_msg_forward,<profile> <domain> <user> <uuid> <dst_domain> <dst_user> [prepend_file_location],vm_fsdb_msg_forward,mod_voicemail
  97. vm_fsdb_msg_get,<format> <profile> <domain> <user> <uuid>,vm_fsdb_msg_get,mod_voicemail
  98. vm_fsdb_msg_list,<format> <profile> <domain> <user> <folder> <filter>,vm_fsdb_msg_list,mod_voicemail
  99. vm_fsdb_msg_purge,<profile> <domain> <user>,vm_fsdb_msg_purge,mod_voicemail
  100. vm_fsdb_msg_save,<profile> <domain> <user> <uuid>,vm_fsdb_msg_save,mod_voicemail
  101. vm_fsdb_msg_undelete,<profile> <domain> <user> <uuid>,vm_fsdb_msg_undelete,mod_voicemail
  102. vm_fsdb_pref_greeting_set,<profile> <domain> <user> <slot> [file-path],vm_fsdb_pref_greeting_set,mod_voicemail
  103. vm_fsdb_pref_password_set,<profile> <domain> <user> <password>,vm_fsdb_pref_password_set,mod_voicemail
  104. vm_fsdb_pref_recname_set,<profile> <domain> <user> <file-path>,vm_fsdb_pref_recname_set,mod_voicemail
  105. vm_inject,[group=<group>[@domain]|domain=<domain>|<box>[@<domain>]] <sound_file> [<cid_num>] [<cid_name>],vm_inject,mod_voicemail
  106. vm_list,<id>@<domain>[/profile] [xml],vm_list,mod_voicemail
  107. vm_prefs,[profile/]<user>@<domain>[|[name_path|greeting_path|password]],vm_prefs,mod_voicemail
  108. vm_read,<id>@<domain>[/profile] <read|unread> [<uuid>],vm_read,mod_voicemail
  109. voicemail,rss [<host> <port> <uri> <user> <domain>] | [load|unload|reload] <profile> [reloadxml],voicemail,mod_voicemail
  110. voicemail_inject,[group=<group>[@domain]|domain=<domain>|<box>[@<domain>]] <sound_file> [<cid_num>] [<cid_name>],voicemail_inject,mod_voicemail
  111. xml_flush_cache,<id> <key> <val>,clear xml cache,mod_commands
  112. xml_locate,[root | <section> <tag> <tag_attr_name> <tag_attr_val>],find some xml,mod_commands
  113. xml_wrap,<command> <args>,Wrap another api command in xml,mod_commands

  115. freeswitch@internal>
複製代碼
作者: 角色    時間: 2012-10-14 17:14

我用zoiper安装了第一个extension 1001，它的credential是

FreeSWITCH IP： 192.168.1.6
Username （extension） ： 1001
Password： 1234


注册成功后拨打5000测试extension，成功了！

圖片附件: 0063.png (2012-10-14 17:14, 7.81 KB) / 下載次數 774
http://telecom-cafe.com/forum/attachment.php?aid=1593&k=3dc2c59b4887e852946b04cd7abbebb0&t=1739736254&sid=59FAzr

作者: 雯雯    時間: 2012-10-14 17:16

又要用command? 暈了! 有沒有辦法compile GUI?
作者: 角色    時間: 2012-10-14 17:24

应该有两个GUI，但是我不知道QNAP是否有？
作者: 角色    時間: 2012-10-14 17:25

已经set了两个extensions，可以互打成功没有问题！
作者: 角色    時間: 2012-10-14 17:29

估计有些人看了这幅帖子，你Intel-based的QNAP NAS都心思思！！！
作者: 角色    時間: 2012-10-14 17:33

简单看了一下，说FreeSWITCH的中文网站真的不多！不知道Telecom-cafe是否会成为FreeSWITCH的中文第一大网站呢？
作者: 雯雯    時間: 2012-10-14 17:35

回復 26# 角色

是呀! 我download了但是未安裝, 光是linux和Asterisk command都搞到我暈!
作者: 角色    時間: 2012-10-14 17:40

本帖最後由 角色 於 2012-10-14 17:41 編輯

回復 28# 雯雯

其实雯雯小师妹，你已经很厉害！很多女孩子都不能达到你这样的程度！

说回现在，其实现在你的问题不是programming，而是不熟悉editor，我们也没有做什么programming，因为你不熟vi，其实应该有别的代替品，但是我真的很少用！我想想看看，是否有一个简单在Unix-like的环境下可以编辑的editor。
作者: 角色    時間: 2012-10-14 17:47

下一步就难很多，例如

1. 外面的SIP Client怎样往我的NAT后面的FS注册呢?

2. SIP-based PSTN provider怎样注册，能打出打入呢？
作者: 角色    時間: 2012-10-14 17:51

我在想，QNAP有了这个FreeSWITCH QPKG，会慢慢吸引很多人来用QNAP （Intel-based）的NAS来学习，就如我当年购买QNAP TS-119的目的——用它的Asterisk QPKG一样！！！！！！！！！
作者: 角色    時間: 2012-10-14 18:22

External SIP Client registration，下面的帖子非常有用：

http://wiki.freeswitch.org/wiki/External_profile
作者: 角色    時間: 2012-10-14 19:14

How to restart FreeSWITCH on QNAP will be a very good question!!!!

If you know it, please contribute.
作者: 角色    時間: 2012-10-14 19:22

很多简单的问题，就如怎看什么SIP Client register FS呢？
作者: 角色    時間: 2012-10-14 19:31

怎样debug FreeSWITCh都是一个大难题。
作者: ckleea    時間: 2012-10-14 21:32

回復 23# 雯雯

Bluebox and other GUI. Very difficult to use
作者: 角色    時間: 2012-10-14 21:34

回復 36# ckleea

That is why I put my concentration on plain FS script only.
作者: 角色    時間: 2012-10-14 21:55

CLI debug level

sofia loglevel all 7
作者: 角色    時間: 2012-10-14 22:46

Debug level
  1. - 0 SU_DEBUG_0() - fatal errors, panic
  2. - 1 SU_DEBUG_1() - critical errors, minimal progress at subsystem level
  3. - 2 SU_DEBUG_2() - non-critical errors
  4. - 3 SU_DEBUG_3() - warnings, progress messages
  5. - 5 SU_DEBUG_5() - signaling protocol actions (incoming packets, ...)
  6. - 7 SU_DEBUG_7() - media protocol actions (incoming packets, ...)
  7. - 9 SU_DEBUG_9() - entering/exiting functions, very verbatim progress
複製代碼
作者: 角色    時間: 2012-10-15 06:49

~/conf/vars.xml  (很多default的settings都在这个xml file里）
  1.   <!-- Internal SIP Profile -->
  2.   <X-PRE-PROCESS cmd="set" data="internal_auth_calls=true"/>
  3.   <X-PRE-PROCESS cmd="set" data="internal_sip_port=5060"/>
  4.   <X-PRE-PROCESS cmd="set" data="internal_tls_port=5061"/>
  5.   <X-PRE-PROCESS cmd="set" data="internal_ssl_enable=false"/>
  6.   <X-PRE-PROCESS cmd="set" data="internal_ssl_dir=${base_dir}/conf/ssl"/>

  8.   <!-- External SIP Profile -->
  9.   <X-PRE-PROCESS cmd="set" data="external_auth_calls=false"/>
  10.   <X-PRE-PROCESS cmd="set" data="external_sip_port=5080"/>
  11.   <X-PRE-PROCESS cmd="set" data="external_tls_port=5081"/>
  12.   <X-PRE-PROCESS cmd="set" data="external_ssl_enable=false"/>
  13.   <X-PRE-PROCESS cmd="set" data="external_ssl_dir=${base_dir}/conf/ssl"/>
  14. </include>
複製代碼
从上面看起来，default internal sip是用5060，怪不得你都去接入其他5060的packets，估计要好好分配所有（SIP，RTP）port的走向。

Asterisk Server 1 (SIP: 5228, RTP: 20000-20999)
Asterisk Server 2 (SIP: 5229, RTP: 21000-21999)

FreeSWITCH Server 1 (SIP: 5330, RTP: 22000-22999)
FreeSWITCH Server 2 (SIP: 5331, RTP: 23000-23999)
作者: 角色    時間: 2012-10-15 22:02

你学来学习FreeSWITCH吗？如果想的话，可以的话一起来学习。
作者: 角色    時間: 2012-10-15 22:11

FreeSWITCH + Google Voice

http://wiki.freeswitch.org/wiki/Google_Voice
作者: ckleea    時間: 2012-10-15 22:36

回復 42# 角色

I have made it work before
作者: 角色    時間: 2012-10-15 22:51

回復 43# ckleea

How was the performance?
作者: 角色    時間: 2012-10-15 22:58

rtp port range

http://wiki.freeswitch.org/wiki/Amazon_ec2

    <!-- RTP port range -->
    <!-- <param name="rnattp-start-port" value="16384"/> -->
    <!-- <param name="rtp-end-port" value="32768"/> -->

    <param name="rtp-enable-zrtp" value="true"/>
作者: 角色    時間: 2012-10-15 23:38

用hostname，而不用WAN IP

http://forum.pfsense.org/index.php?topic=18200.0;wap2
作者: 角色    時間: 2012-10-16 22:18

本帖最後由 角色 於 2012-10-17 09:40 編輯

Iptel Gateway (Trunk)

1. Change directory into /usr/local/freeswitch/conf/sip_profiles/external

2. vi iptel.org.xml, which contains the following code
  1. <include>
  2.   <gateway name="iptel-trunk">
  3.     <param name="username" value="login-name"/>
  4.     <param name="password" value="password-login-name"/>
  5.     <param name="realm" value="iptel.org"/>
  6.     <!-- iptel.org requires a 'proxy' parameter -->
  7.     <param name="proxy" value="sip.iptel.org"/>
  8.   </gateway>-->
  9. </include>
  10. ~
複製代碼
3. cli > reloadxml

4. cli > sofia status gives

5. How to make outbound call via iptel-trunk is still an unknown.

圖片附件: 0067.png (2012-10-16 22:18, 10.87 KB) / 下載次數 943
http://telecom-cafe.com/forum/attachment.php?aid=1599&k=4a2f71700ce57854785a618af3b6f7c8&t=1739736254&sid=59FAzr

作者: 角色    時間: 2012-10-18 18:58

终于可以Internet外的SIP client注册到我的FS里。

失败原因：

1. Router NAT没有设好 （这个老问题，就是SIP，RTP ports要分好）
2. FS的SIP port没有设好 （从5060搞到5160）
3. FS的domain没有设好 （从IP改到别的domain）

SIP Client：

domain：5161
username
password
作者: 角色    時間: 2012-10-18 19:21

下个就是Gateways的打出和接入！！！
Gateways：

Iptel
HKBN 2b
ComNet Phone
OBi110
作者: 角色    時間: 2012-10-18 22:31

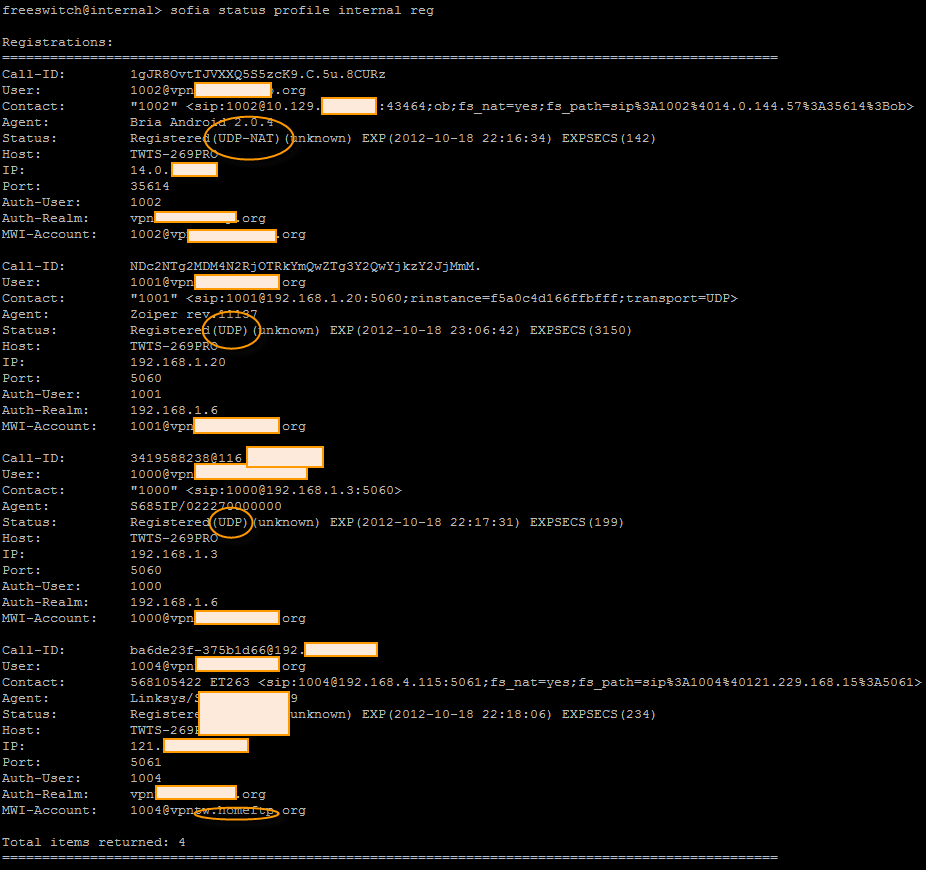

刚才找大陆member测试一下我的FreeSWITCH，效果不错。


圖片附件: 0069.png (2012-10-18 22:31, 63.85 KB) / 下載次數 947
http://telecom-cafe.com/forum/attachment.php?aid=1614&k=2138e37b177758e1b9c1950dc7b216f0&t=1739736254&sid=59FAzr

作者: 角色    時間: 2012-10-18 22:44

下个目标先学习Dialplan。
作者: 角色    時間: 2012-10-19 09:31

Iptel and ComNet可以在FreeSWITCH上注册，但是HKBN 2b还不可以。

现在测试一下Iptel和ComNet的打出打入的FS Dialplan是怎样设置的。
作者: 角色    時間: 2012-10-19 13:02

本帖最後由 角色 於 2012-10-19 13:04 編輯

ComNet Phone （Formally called CM Phone) Gateway Settings on FreeSWITCH

1. Change directory into /usr/local/freeswitch/conf/sip_profiles/external

2. Create and edit a file "cnphone.xml" containing the following scripts
  1. <include>
  2.   <gateway name="cnphone">
  3.     <param name="username" value="85235018888"/>
  4.     <param name="password" value="123123"/>
  5.     <param name="proxy" value="202.0.179.3"/>
  6.   </gateway>-->
  7. </include>
  8. ~
複製代碼
3. Update the gateway xml file: cnphone.xml
  1. sofia profile external rescan reloadxml
複製代碼
4. Check the gateway registration status by
  1. freeswitch@internal> sofia status
  2.                      Name          Type                                       Data      State
  3. =================================================================================
  4.      external::cnphone       gateway           sip:85235018888@202.0.179.3:5060      REGED
  5. =================================================================================
複製代碼
5. When you see the word "REGED", it means that your gateway registration is complete.
作者: 角色    時間: 2012-10-19 18:30

Gateway （Trunk） outbound call

1. Change directory into /usr/local/freeswitch/conf/dialplan

2， vi default.xml and the following script at the early part of the script
  1.     <extension name="dial-8-digit-numbers">
  2.       <condition field="destination_number" expression="^(\d{8})$">
  3.       <action application="bridge" data="sofia/gateway/cnphone614/$1"/>
  4.       </condition>
  5.     </extension>
複製代碼
3. CLI > reloadxml
作者: 角色    時間: 2012-10-19 18:43

set好cn phone inbound，一打入就断线，跟asterisk一样！
作者: 角色    時間: 2012-10-19 20:03

就是华为的Switch不Standard，一看到silenceSupp=off就跟你say bye。
作者: 角色    時間: 2012-10-20 23:11

因为Huawei的softswitch不会有什么更改，而FreeSWITCH暂时没有方法或者option去屏蔽了SilenceSupp=off这一句。那么CN Phone就不能在FreeSWITCH上面用了。



歡迎光臨 電訊茶室 (http://telecom-cafe.com/forum/) Powered by Discuz! 7.2
