標題: 行 L2PT 的IP PHONE VOIP電話機網絡電話/NET535 [打印本頁]

作者: wingchai 時間: 2012-10-14 11:59 標題: 行 L2PT 的IP PHONE VOIP電話機網絡電話/NET535


Basic Features
Higher-resolution LCD color screen display
7-inch touch screen with backlight
Support 5 different styles of desktop settings
Support optical sensor
Super-large capacity of group-style phone book (10000 items) /incoming/outgoing/missed call, each support 10,000 records)
Support vcard sync phone book and support .csv export/import to phone book
Support Chinese/ English language
Security and easy to maintenance and management
Support auto provision by remote login or USB 2.0 uploading
Support unified management by Fanvil PIM software
Support image standards(Support JPG,BMP,PNG)
Support audio(MP3, APE, VOC, AU, AIFF, WMA, OGG, WAV)
Support video(FLV, MPG, MPG2, MP4, AVI, H.264)
Support advertising display(standby logo, home page, dial-up by ad logo, friendly interface, media player etc.)
Support screen savers: Digital Photo Frame, clock screensaver, turn off LCD

Phone Features
Support VoIP/PSTN two modules
Support DTMF_RFC2833, DTMF_RELAY, DTMF_SIP_INFO
Support headsets (RJ-9 connector)
Call control features: flexible dial map, hotline, empty calling reject, black list for reject authenticated call, limit call, no disturb, caller ID
Codec: G.711A/U, G.722.1, G.723.1, G.726, G.729A/B, G.722 appendix III, iLBC, AMR-NB, AMR-WB
SIP application: support(Hold/Call Waiting/Call Forward/Call Transfer/Conference/Auto Answer/Call Pickup/Call Joincall/Redial/Unredial/Paging and Intercom)
Support IP to IP call
Support volumes adjusting and ring type changing

Voice Features
Echo cancellation: support G.168, and hands-free can support 96ms, hand free speaker phone
Support Jitter Buffer
Support Voice Gain Setting, VAD, CNG
Full duplex hands-free speaker phone

Security
Support Basic/Digest authentication
Support SRTP, AES encryption
Support hierarchical management for various users

Network Features
Support Static/DHCP/PPPoE
Support bridge and router
Support PoE
Support stun transverse
Support DNS
Support VPN (OpenVPN)
Support SNTP
Support ACL(Access List)
Support remote setting and management (WEB, Telnet)
Support QoS: IEEE 802.1P/Q (VLAN)
Support HTTP/TELNET/FTP/TFTP

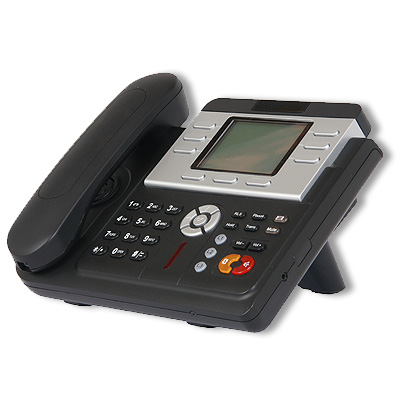

圖片附件: T2RoqPXaVaXXXXXXXX_!!81884929.jpg (2012-10-14 11:57, 36.47 KB) / 下載次數 536
http://telecom-cafe.com/forum/attachment.php?aid=1586&k=0548647d14ee582fadd265873e040c85&t=1732269767&sid=KdhhvY

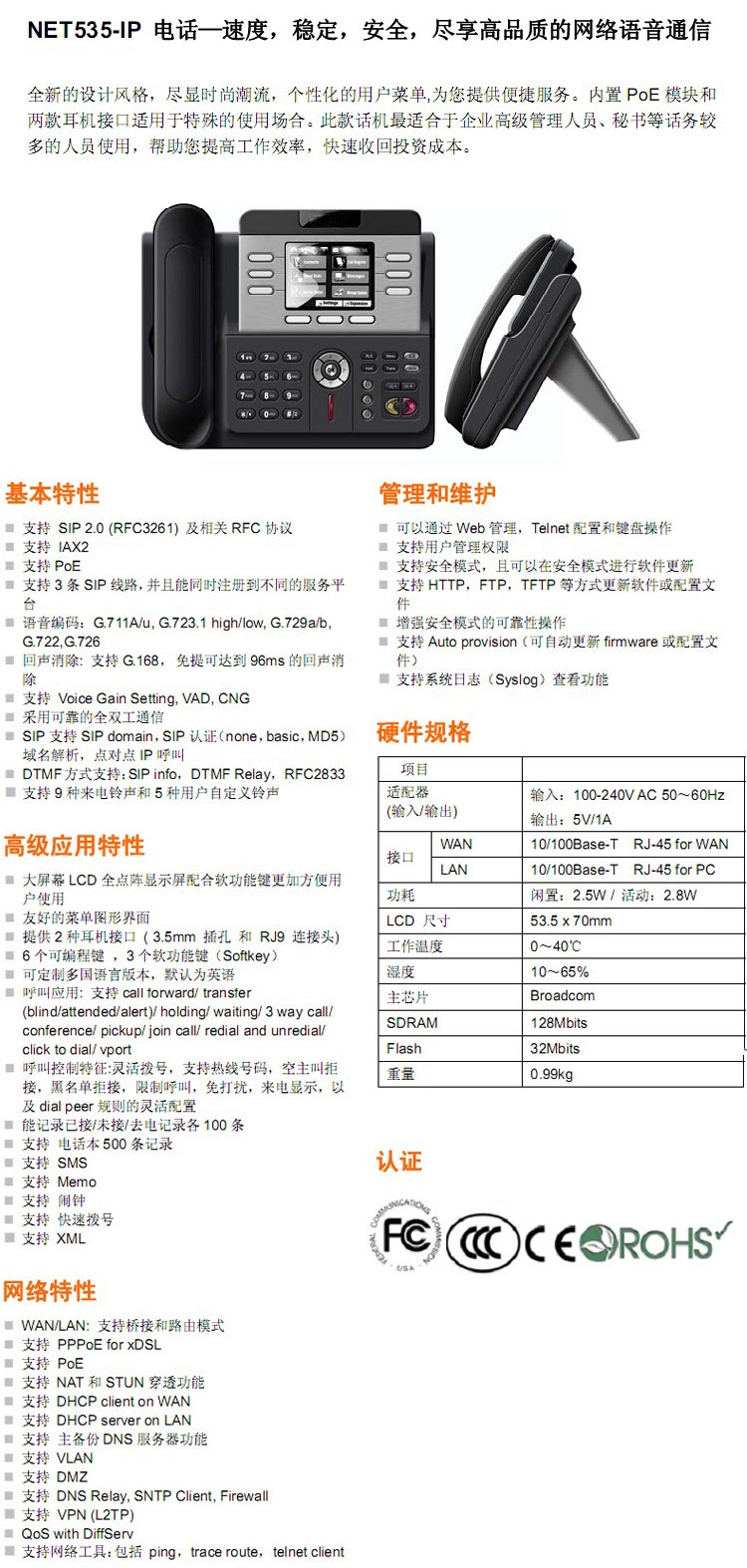

圖片附件: T2zRePXiRaXXXXXXXX_!!81884929.jpg (2012-10-14 11:57, 490.76 KB) / 下載次數 579
http://telecom-cafe.com/forum/attachment.php?aid=1587&k=dcfc72193ab4187c7729fbe7dc10285b&t=1732269767&sid=KdhhvY

作者: 角色 時間: 2012-10-14 12:54

不错的信息，看上去，engine像ATCOM的产品，都是行L2TP。那么如果要用，可以要Draytek的router的LT2P VPN server。

还有不知道卖多少钱呢？

作者: 角色 時間: 2012-10-14 13:04

回復 1# wingchai

但是在最后英文说明是support OpenVPN。

作者: wingchai 時間: 2012-10-14 23:52

回復 wingchai

但是在最后英文说明是support OpenVPN。
角色發表於 2012-10-14 13:04

應是L2tp ,

作者: wingchai 時間: 2012-10-14 23:56

不错的信息，看上去，engine像ATCOM的产品，都是行L2TP。那么如果要用，可以要Draytek的router的LT2P VPN s ...
角色發表於 2012-10-14 12:54

NET535賣399人仔, PPTP和L2TP 用那個比較好呢?

作者: 角色 時間: 2012-10-15 06:30

回復 5# wingchai

方便来说，当然是PPTP，因为这样的Server比较多。

作者: wingchai 時間: 2012-10-15 18:50

回復 wingchai

方便来说，当然是PPTP，因为这样的Server比较多。
角色發表於 2012-10-15 06:30

所以如镸用的話draytek vpn router 是首選

作者: antonyu 時間: 2012-11-28 22:01

請問這款電話...

1. 如用COMNET PHONE的話, 是否透過電話的設定再輸入連接COMNET PHONE SERVER的資料後就能直接使用電話功能? 如這種連接可行的話, 假若同一網絡下使用多於一部的話, 可否做HUNTING呢?
2. 此電話能支援ASTERISK嗎? 因為我有SYNOLOGY想嘗試用SYNOLOGY的ASTERISK連接多於一部的NET535作HUNTING使用.

因為是初哥, 如有謬誤之處. 還望指教.

謝謝!

作者: 角色 時間: 2012-11-28 22:38

回復 8# antonyu

估计应该可以。

如果注册Asterisk，应该没有问题。至于Synology里的Asterisk，有member说有问题，member自己从新再compile，如果你想知道怎样compile就要请教我们的小师妹雯雯！

作者: wingchai 時間: 2012-12-4 00:01

請問這款電話...

1. 如用COMNET PHONE的話, 是否透過電話的設定再輸入連接COMNET PHONE SERVER的資料後就 ...
antonyu 發表於 2012-11-28 22:01

我現在用 DGP306-o very good.

http://www.telecom-cafe.com/forum/viewthread.php?tid=4820
