I am running Centos 5.8 64bit with elastix 2.3 VOIP phone system on the Intense PC with 16GB Crucial 1333 Mem, 256GB Samsung 830 SSD 3 drive and the Intel Core i7 Proc. This system has 100 Yealink HD phones for Cubes and 45 Polycom 670 sets for the offices. It is runing for 3 days without issues.
1. Intense PC Pro Barebone
Intel Core i7-3517UE (1.7 GHz dual core + Intel HD Graphics 4000 – 17W)
no RAM
no HDD
WiFi 802.11 b/g/n + BT 3
4 USB FACE Module
$836
+shipping, duty & VAT
2. Intense PC Pro 8GB Linux
Intel Core i7-3517UE (1.7 GHz dual core + Intel HD Graphics 4000 – 17W)
8GB (4GB DDR3 SODIMM x2)
HDD 500GB with Linux Mint
WiFi 802.11 b/g/n + BT 3
4 USB FACE Module
$999
+shipping, duty & VAT
3. Intense PC Pro 8GB Win7 Pro
Intel Core i7-3517UE (1.7 GHz dual core + Intel HD Graphics 4000 – 17W)
8GB (4GB DDR3 SODIMM x2)
HDD 500GB with Windows 7 Pro
WiFi 802.11 b/g/n + BT 3
4 USB FACE Module

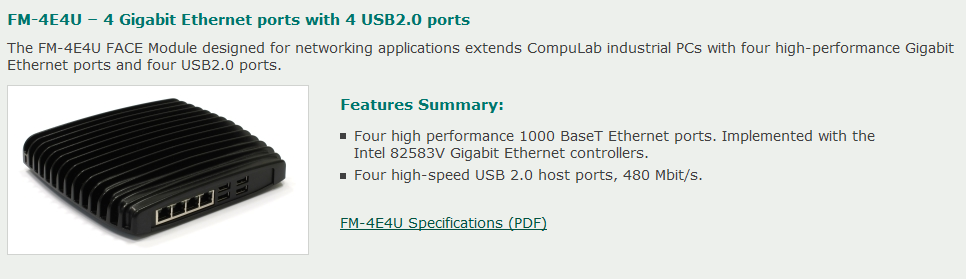

Yes, it is really expensive. What I am interested in is its flexibility and ability to change the FACE Module to extend extra functions such as 4 USB, 4 more gigalan Ethernet + 4 USB, metal case for heat dissipation, etc. Even more, they are planning to develop its mSATA to install OS while the original SATA be used as storage.
Also, this powerful tiny form factor can now be confirmed to run under CentOS, Unbuntu as server, not to mention its capability for original home entertainment and casual gamers.作者: 角色 時間: 2012-9-30 08:54
It looks very good. It could provide the basics that we need for learning Linux, router (at least 2 ports) but the price is really high if we computer them with ATOM's ones.
If the front panel could be 4 LAN ports and 4 USB ports, then the hardware for learning should be perfect such that we could build very powerfully N-WAN and N-LAN router.
Zotac Z77-ITX WiFi 3rd Gen Core Socket 1155 Mini-ITX Motherboard with 4x SATA, 2x LAN and mSATA
Zotac Z77-ITX WiFi Mini-ITX board with Intel Z77 Express chipset supporting Intel 2nd and 3rd Gen Core LGA1155 processors with integrated Intel HD graphics and 8 channel Audio; PCI Express 3.0 x16; Up to 16GB of DDR3 RAM; 2x Gigabit LAN; 4x SATA with RAID 0, 1, 0+1, 5; 1x Mini PCI Express slot supporting mSATA; Mini DisplayPort (supporting up to 2560x1600 @ 60Hz) & 2x HDMI graphics outputs (supporting up to 1920x1200 @ 60Hz); S/PDIF; 4x USB 3.0 (inc 2 internal); 8x USB 2.0 (inc 4 internal); 802.11n/g/b (300 Mb/s) WiFi and Antenna (Bluetooth supported).
Rear Panel Connectors: 4x USB 2.0; 2x 802.11n WiFi Antenna; Clear CMOS Button; PS2/Mouse Port; 2x USB 3.0 (coloured blue); 2x Gigabit LAN; 2x HDMI; Mini DisplayPort; 5x switchable 3.5mm audio connectors; S/PDIF optical digital audio out.
Board connectors: 24pin ATX Main power connector (20pins can be connected, but the 12V P4 connector must be connected); Processor core power connector (12V 4pin P4); SATA connectors: 2x SATA 6Gb/s (coloured blue), 2x SATA 3Gb/s (coloured red); 2x Front panel USB 2.0 headers (for 3 ports); 1x Front Panel USB 3.0 header (19pin, for 2 ports); 2x 240-pin DDR3 DIMM Sockets; PCI Express 3.0 x16 bus add-in card connector (3.0 graphics cards supported only with 3rd Gen Core processor); Vertical Half-Height Mini-PCI Express card slot (populated with WiFi card); Mini-PCI Express slot (supports Half/Mini sizes, also supports mSATA); S/PDIF out header; Front panel audio header; Reset Switch, Power Button; Clear CMOS Jumper; System and Processor fan headers; Speaker Header; .
Onboard RAID: The Z77-ITX supports Intel Rapid Storage Technology which provides the following RAID levels via the Intel H77 Express Chipset: RAID 0 - data striping; RAID 1 - data mirroring; RAID 0+1 (or RAID 10) - data striping and mirroring; RAID 5 - distributed parity.作者: 角色 時間: 2012-9-30 12:30
The form factor of Intense PC is much more compact in size that could be fitted in a small room.作者: 雯雯 時間: 2012-9-30 12:35
