標題: OBi1xx Firmware 1.3 features (Beta Version) [打印本頁]

作者: 角色 時間: 2011-8-23 21:29 標題: OBi1xx Firmware 1.3 features (Beta Version)

Hello,

Would you like to be part of our Beta Tester group?

We have a new release that includes the following:
Here are the v1.3 highlights:
- Record up to 8 different customized AA prompts from the OBi PHONE Port.
- Upload / download of a package of user-recorded AA prompts via the OBi web browser interface.
- Call recording from the Call Status web page (PHONE port calls only):
- Record and Stop Record button will be shown next to the call (Firefox Only).
- Recording saved as an au file.
- Allow Caller-id spoofing for calls bridged via OBiTALK service. But use the obi number for circle-of-trust authentication.
- Support for blind transfer via star-code. Default star-code is *98
- All InboundCallRoute and OutboundCallRoute syntax will take a ";d=[delay-in-seconds]" parameter after the number to call from the specified trunk, and to insert a delay before the trunk makes the call. For example, SP1(18002211212;d=3) tells the OBi to call the number from SP1 after a 3-second delay.
- Support for options to insert Proxy-Require and Accept-Language headers in outbound INVITE, SUBSCRIBE, and REGISTER requests. Contents are configurable under ITSP Profile A/B - SIP section.
- Support configurable value of Max-Forwards header; option under ITSP Profile A/B - SIP section (Default: 70).
- Support for SIP over TCP/TLS.
- SRTP (S-Descriptor Authentication)

List of the 8 prompts that are replaceable with a user derived recording:
  - Welcome (to OBi Attendant) (optional)
  - Main Menu (optional)
  - Selection Menu – Press 1 to …, Press 2 to …
  - Enter PIN (optional if PIN not used)
  - Invalid PIN (optional if PIN not used)
  - Enter Number (followed by the # key)
  - Please Wait (while your call is being connected)
  - Goodbye (optional)
- Other Post Dialing Announcements, following SIT tone, are not replaceable.
  Prompts can be uploaded to the OBi device as a single prompt file using the device web page:
User records the prompts one-by-one using their favorite tool.
  They will store each prompt as a standard wave file using 16-bit uncompressed PCM, mono, 16kHz sample rate.
  Obihai provides a tool to create the upload file from the wave files.
  The OBi web page has a “browse” button to locate the file and upload to the OBi.
  User MUST reboot after the prompt file uploads successfully.
  Each prompt can also be recorded from the PHONE port.
  Prompts will take effect after a reboot (automatically when hang up).

Thank you:
Sherman

作者: 雯雯 時間: 2011-8-23 21:32

回復 1# 角色

我想試!

作者: 角色 時間: 2011-8-23 23:21

你可以向Obihai Technical Team申请，看看是否批核。

角色

作者: 角色 時間: 2011-8-24 13:16

回復角色

我想試!
雯雯發表於 2011-8-23 21:32

雯雯，你也可以参与测试计划，请看：

http://www.obitalk.com/forum/index.php?topic=1293.0

作者: 雯雯 時間: 2011-8-24 13:27

回復 4# 角色

我睇唔到, 個post有限制.

作者: 角色 時間: 2011-8-24 14:01

The contents of the above link is as follows:

Beta Testers:

There is a new beta release available called 1.3
If you would like to test this release, please email support@obihai.com with your 9-digit OBi No.
You will be notified when your OBi is updated with the beta firmware.

Here are the v1.3 highlights:
- Record up to 8 different customized AA prompts from the OBi PHONE Port.
- Upload / download of a package of user-recorded AA prompts via the OBi web browser interface.
- Call recording from the Call Status web page (PHONE port calls only):
- Record and Stop Record button will be shown next to the call (Firefox Only).
- Recording saved as an au file.
- Allow Caller-id spoofing for calls bridged via OBiTALK service. But use the obi number for circle-of-trust authentication.
- Support for blind transfer via star-code. Default star-code is *98
- All InboundCallRoute and OutboundCallRoute syntax will take a ";d=[delay-in-seconds]" parameter after the number to call from the specified trunk, and to insert a delay before the trunk makes the call. For example, SP1(18002211212;d=3) tells the OBi to call the number from SP1 after a 3-second delay.
- Support for options to insert Proxy-Require and Accept-Language headers in outbound INVITE, SUBSCRIBE, and REGISTER requests. Contents are configurable under ITSP Profile A/B - SIP section.
- Support configurable value of Max-Forwards header; option under ITSP Profile A/B - SIP section (Default: 70).
- Support for SIP over TCP/TLS.
- SRTP (S-Descriptor Authentication)

List of the 8 prompts that are replaceable with a user derived recording:
  - Welcome (to OBi Attendant) (optional)
  - Main Menu (optional)
  - Selection Menu – Press 1 to …, Press 2 to …
  - Enter PIN (optional if PIN not used)
  - Invalid PIN (optional if PIN not used)
  - Enter Number (followed by the # key)
  - Please Wait (while your call is being connected)
  - Goodbye (optional)
- Other Post Dialing Announcements, following SIT tone, are not replaceable.
  Prompts can be uploaded to the OBi device as a single prompt file using the device web page:
User records the prompts one-by-one using their favorite tool.
  They will store each prompt as a standard wave file using 16-bit uncompressed PCM, mono, 16kHz sample rate.
  Obihai provides a tool to create the upload file from the wave files.
  The OBi web page has a “browse” button to locate the file and upload to the OBi.
  User MUST reboot after the prompt file uploads successfully.
  Each prompt can also be recorded from the PHONE port.
  Prompts will take effect after a reboot (automatically when hang up).

Report to moderator Logged

作者: Skypeus 時間: 2011-8-25 09:25

我也想申请，不知能否批核？

作者: fatfish 時間: 2011-8-25 13:44

看着好强大

作者: Skypeus 時間: 2011-8-25 22:53

已经用上1.3.0 Firmware 了，正在试用中..........

作者: Skypeus 時間: 2011-8-26 09:38

请教角色在Firmware 1.3 beta中那个User Prompts 和 AA1 Prompts 是如何设置的？怎么上传自定义语音文件？

作者: 角色 時間: 2011-8-26 11:52

Q. How to record user prompts on your OBi device?
A.
- There are 10 slots for User Recordable Prompts
- The maximum length for each user prompt is 60s
- Total space available for all user prompts is 122s
- User Prompts are referenced in AA Prompts configuration with the notations %USER1%, %USER2%, … %USER10%
- Prompts are recorded via PHONE Port IVR main menu 0 (that is, dial * * * 0), and enter option 1001#
      for %USER1% prompt, 1002# for %USER2% prompt, and so on, up to 1010#.
o When you are prompted to enter “value” when recording prompt, press any digit 0-9 to start recording. When you’re done, press #
o Tips: Leave at least 1s of space at the end before hitting # to avoid the ending being truncated.
o Afterwards, you can review your recording, and save it permanently if you are satisfied with it. Otherwise you can record again
o After you have saved a recorded prompt, you can proceed to record a different one. When you hang up, the OBi device will reboot automatically so that the new prompts can take effect
- Each user prompt has two status parameters shown at the top under the Auto Attendant page:
o Description – A short text description of what to the prompt contains; limited to 80 characters. User can edit the description on the device web page. The description is stored as part of the prompt data and can be backed up and restored along with the prompt data. After you have recorded one more new prompts, you should go to this page to modify the descriptions and save them with the new prompts
o Length – The duration of the prompt in milliseconds
o The page also shows (at the bottom of the section) how much total space has been used and total available space remaining

-------

Q. How to use the recorded prompts for AA1?
A.
- AA1 has the following programmable prompt parameters with default factory provided contents:
o Welcome – Default = “Welcome to OBi Attendant”
o MenuTitle –  Default = “Main Menu”
o Menu – Default = “Press 1 to continue this call, Press 2 to make a new call, Press 3 to enter a callback number”, repeated 3 times
o EnterNumber – Default = “Enter number followed by # key”
o EnterPin – Default = “Enter PIN”
o InvalidPin – Default = “Invalid PIN”
o PleaseWait – Default = “Please wait while your call is being connected”
o Bye – Default = “Thank you for choosing OBiHAI. Goodbye”

- The default contents are played if the prompt parameter is blank
- To play your own recorded prompts, you enter one or more user prompts (separated by comma), such as: %USER1%, %USER2%. OBi will play the user prompts one by one in the order the user prompts are listed in the parameter
- Each user prompt in the list takes an optional “r=[start][-end]” parameter to specify the range of the recorded prompt to play; unit is in milliseconds. For example:
o %USER3%;r=1000    (starts playing at the 1000 ms mark to the end)
o %USER5%;r=-2500    (starts from beginning to the 2500 ms mark)
o %USER6%;r=1300-3720 (starts from the  1300 ms mark to the 3720 ms mark)
o %USER5%;r=3200-1200 (does not play anything since end < start)
o
- To insert additional silence period while playing the prompts, you can add one more “&pause(<length>)” where length is the duration of the pause in seconds. For example:
o %USER1%;r=1200,&pause(2),%USER2%,&pause(3)

作者: Skypeus 時間: 2011-8-26 15:12

本帖最後由 Skypeus 於 2011-8-26 15:18 編輯

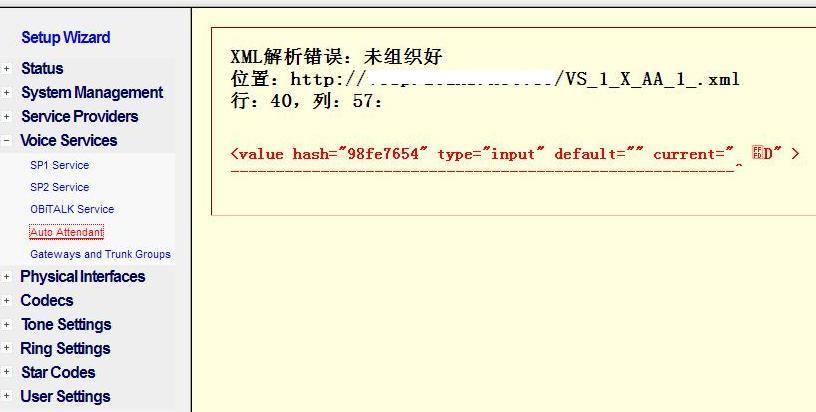

试录了%USER1%, %USER2%,然后在OBI网页浏览AA时出错了。

怎么办？？

圖片附件: fw 1.3.0.JPG (2011-8-26 15:17, 39.05 KB) / 下載次數 805
http://telecom-cafe.com/forum/attachment.php?aid=857&k=df784fd9896d477aba2d81b4ee78ba27&t=1732589612&sid=yfe2e1

作者: 角色 時間: 2011-8-26 17:37

我也没有试过，所以不知道怎样帮助你。

角色

作者: Skypeus 時間: 2011-8-29 15:27

AA已经用上自定义语音提示了。

只是这个firmware还有bug, 在网页浏览AA页面时会出错。

作者: 角色 時間: 2011-8-29 21:20

把你的问题刊登上来，然后我发到OBihai forum。

角色

作者: Skypeus 時間: 2011-8-30 16:36

本帖最後由 Skypeus 於 2011-8-30 16:41 編輯

第一次录完自定义的AA语音后，在打开AA配置网页时出错，出错信息如12楼贴图所示，之后我试过几次Reset Configuration与 Restore Factory Default 都不能修复这个，浏览AA网页还出现同样的错误提示；后来试着在IVR菜单提示下把之录入自定义语音都取消掉，再打开AA页面时就不出错了。

但重新录音后,浏览AA页面还是出错，不知什么原因？

现在自定义的AA语音是设置好了，但浏览不了AA配置网页，所以相关参数还不能修改。
希望角色兄把这个Bug帮忙转发给OBihai ，看能否修复这个问题，谢谢！

作者: Skypeus 時間: 2011-9-2 09:02

在Firmware 1.3 录制的提示语音有背景噪音，如何去除背景噪音？或者在那里可以提取到录制的语音文件啊？我想把它编辑一下再上传到OBIxxx设备里面去。

作者: 角色 時間: 2011-9-2 09:03

这个问题很难解决，除非你是语音合成开发软件。

角色

作者: fatfish 時間: 2011-9-7 20:21

我也刷了最新的固件

作者: Skypeus 時間: 2011-9-7 23:03

我也刷了最新的固件
fatfish 發表於 2011-9-7 20:21

fatfish, 你在firmware 1.3 的AA网页在录音后能正常查看吗？我的出错了，到现在都没有修得这个bug

作者: bubblestar 時間: 2011-9-8 20:02

似乎沒有人提到該FORUM的警告，如果有什麼Bugs，可能沒法回復舊版本，要硬食的。使用前要有心理準備，不適應新版本的話，後果自負，又或要再等修正版。

WARNING - VERY IMPORTANT NOTICE - PLEASE READ:After updating your OBi to this release you may not downgrade your OBi to any release below 1-3-0.

作者: fatfish 時間: 2011-9-8 20:09

fatfish, 你在firmware 1.3 的AA网页在录音后能正常查看吗？我的出错了，到现在都没有修得这个bug ...
Skypeus 發表於 2011-9-7 23:03

我没录音
我觉得哪个录音是个鸡肋

作者: 角色 時間: 2011-9-10 08:20

回復 21# bubblestar

所以我用一台空置的OBi110安装Firmware 1.3，但是由于太忙，所以还没有做详细测试。

角色

作者: keernest 時間: 2011-9-10 08:35

性能有够强大吗？我还不敢做白老鼠。

作者: Skypeus 時間: 2011-9-10 10:43

我把全部OBI设备都升级到了firmware 1.3.0了。但旧bug还存在
另外，我想知道在Obi110 Firmware 1.3 如何上传自己AA的语音文件？？
官网提到的：Obihai provides a tool to create the upload file from the wave files.
The OBi web page has a “browse” button to locate the file and upload to the OBi.
这个工具在那里可以下载到？那个上载语音文件的页面在那里？

作者: leitany 時間: 2011-9-10 10:53

我也是不敢升级1.3

作者: 雯雯 時間: 2011-9-24 14:40

回復 12# Skypeus

你是不是用Win7? 我剛剛試了用Win7的IE和Firefox去開都唔得, 用XP又無事!

作者: Skypeus 時間: 2011-9-26 08:58

回復 Skypeus

你是不是用Win7? 我剛剛試了用Win7的IE和Firefox去開都唔得, 用XP又無事! ...
雯雯發表於 2011-9-24 14:40

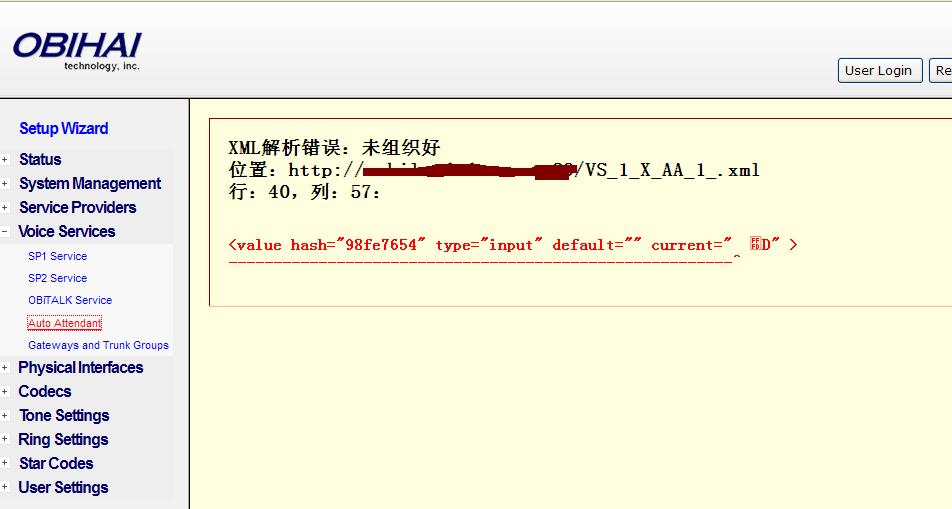

在录制完AA自定义语音后，在win7,winxp ,macosx 下ie,firefox,safari都试过浏览Auto Attendant 页面都会出错，如下图所示，OBI最新firmware也未能修复这个bug.

圖片附件: [firmware1.3 bug] bug.JPG (2011-9-26 08:57, 50.38 KB) / 下載次數 611
http://telecom-cafe.com/forum/attachment.php?aid=929&k=f472b7a5016f6b3f59c044ddfc9c659b&t=1732589612&sid=yfe2e1

作者: 雯雯 時間: 2011-9-26 09:34

回復 28# Skypeus

我是未錄製AA自定義語音就已經在Win7出現這個問題.
