標題: Asterisk 1.6 + FreePBX (Install from AsteriskNOW 1.7) + TDM400P Using Dahdi [打印本頁]

作者: 角色 時間: 2010-8-30 07:36 標題: Asterisk 1.6 + FreePBX (Install from AsteriskNOW 1.7) + TDM400P Using Dahdi

因为加卡问题，所以参考下面网页也不成功，不知道members中是否有安装TDM400P和用dahdi driver的经验呢？如果有可否分享一下呢？

http://wiki.contribs.org/FreePBX/DAHDI

角色

作者: 角色 時間: 2010-8-30 08:25

先用下面的指令产生一个dahdi-channels.conf

dahdi_genconf

然后把dahdi-channels.conf加入

; inculde TDM400P configuration files
#include dahdi-channels.conf

就可以，当然你加入你要在CLI做dahdi reload。

角色

作者: 角色 時間: 2010-8-30 08:28

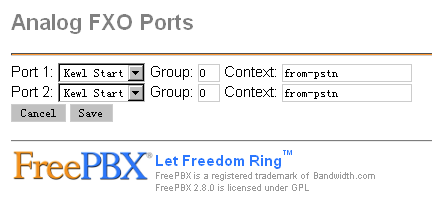

另外一个方法是在Dahdi module，去edit Analogue Hardware

也可以。

角色

圖片附件: 0024.png (2010-8-30 08:27, 12.21 KB) / 下載次數 384
http://telecom-cafe.com/forum/attachment.php?aid=172&k=189bcbaee397ab33b057c278c50d351e&t=1732315439&sid=CuXINP

作者: ckleea 時間: 2010-8-30 08:57

Not try Free PBX before, but a normal yum install can do for asterisk 1.6, dahdi and TDM400p install

作者: 角色 時間: 2010-8-30 09:28

I am able to select which fxo port to send the outbound calls. Now all the calls from all fxo ports go to a fixed extensions. When I am trying to route different fxo ports to extensions, it fails.

The way of freepbx's thinking is defferent from Asterisk-GUI. In freepbx, it requires DID/CID for routing. The fxo DID is defined in Zap channel DID.

It is wasting of our time in exploring non-mature GUI: FreePBX.

YH

作者: lttliang 時間: 2010-8-30 09:51

几时可以出本安装手册？ PDF版

作者: 角色 時間: 2010-8-30 09:53

Since I am not going to use Freepbx, then there is no installation manual for freepbx + TDM400P is provided.

YH

作者: lttliang 時間: 2010-8-30 09:54

不是指freepbx 而且asterisk

作者: 角色 時間: 2010-8-30 09:57

It is pretty simple that you install CentOS and yum for Asterisk. That is it.

YH

作者: ckleea 時間: 2010-8-30 10:14

You can also set up FXOs for line hunting.
